Symbol library – plants

The gCADPlus symbol library is accessed from the Library drop down menu.

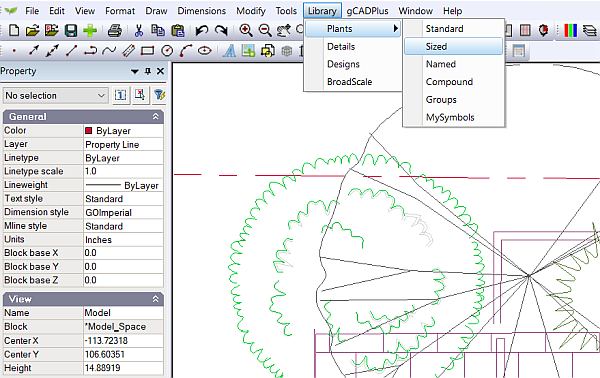

This menu provides quick access to a wide range of symbols for species planting and other details. The ‘plants ‘group contains three types of symbols – Standard, Sized, Named Compound, Groups and MySymbols. A number of these contain sub-groups of symbols. The figure below show a gCADPlus user accessing the sized symbol group.

Library Drop Menu

Standard symbols

The standard group consists of > 100 stock symbols suitable for indicating the position of a plant specimen. Selecting the Standard group pops up a dialog box shown below.

Browse symbols

The name of the symbol shows in the left column and a snapshot of the symbol shows at right. The mouse or the arrow keys on the keyboard can be used to scroll up and down the list. Clicking on the symbol starts the blocks dialog box command and prepares the symbol for insertion into the drawing.

Tip: If you do not want the date and type of information showing in this box, right click and un-check the option.

Insert symbol

It is possible at this point to rename the symbol, edit it or even delete the symbol if it’s not to your liking.

Selecting the symbol pops up yet another box. This allow setting the method for sizing, origin, etc. In the example below, the designer will specify the insertion point, but leaves scale fixed at 1.0 and rotation set at angle 0.

Insert image

Tip:  By default, each symbol in the default group has a canopy diameter of 1 meter (or 3 feet in the Imperial version of gCADPlus).

Two layers have been used for each symbol. The main symbol information is located on a later L-PLNT-SYMBOL. A layer called L-PLNT-CONSTRUCTION is also used and contains a circle and point entity centered at coordinate position 0,0. Layer L-PLNT-CONSTRUCTION is turned off by default. This layer system can be used to show a construction team the location of particular species.

Distance option We demonstrate the use of planting symbols in the gCADPlus ‘standard’ library. It is possible with a couple of mouse clicks to print either a full color plan or one for the construction team from the same design file.

Distance option This movie shows the use of the ‘modern’ symbol set in a gCADPlus design.

Distance option This movie shows the use of the elevation sub-set of the standard planting symbols.

Elevation symbols

Sized

The sized group contains links to symbols for climbers, grasses, ground covers, hedge, large, medium, small and mini shrubs, small and large trees adjust according to expected size. Each symbol has been made in such a way as to make the handling of upper canopy planting a little easier. The entities making up the symbol have been placed on a layer specific for the size of the species. As shown in the movie below, it is a simple matter to adjust the color of the Tall Tree or Small Tree layer to ‘lighten’ it off.

Distance option Using the sized group of library symbols in gCADPlus. We show how to control the display of upper canopy species in a landscape plan.

Named

The named group contains symbols designed illustrate specific species.

Compound

The Compound group.

Groups

The ‘Groups’ group

MySymbols

The MySymbols group.

Details

The ‘details’ group leads to symbols for details such as north points, drawing sheets etc. The ‘designs’ group is provided so you can store completed design work ready for incorporation into new jobs. The ‘broadscale’ group is designed for use in large scale projects. Tip: Selecting a symbol enables it to be dropped directly into a design.
