Fillet

The fillet command enables users to create a rounded corner (or fillet) between various entities such as lines, polylines, arcs etc. by extending them, then trimming. It is well worth experimenting with it in gCADPlus. Filleting can save much editing time. For example, it can be used to square off a corner in one single click without the need for a double trim. Alternatively, the resultant corner can be given a radius.

Image files Rather than use the TRIM command and having to select the cutting edge(s) and then the entity to trim, it is often much easier to fillet two lines using a fillet radius of zero.

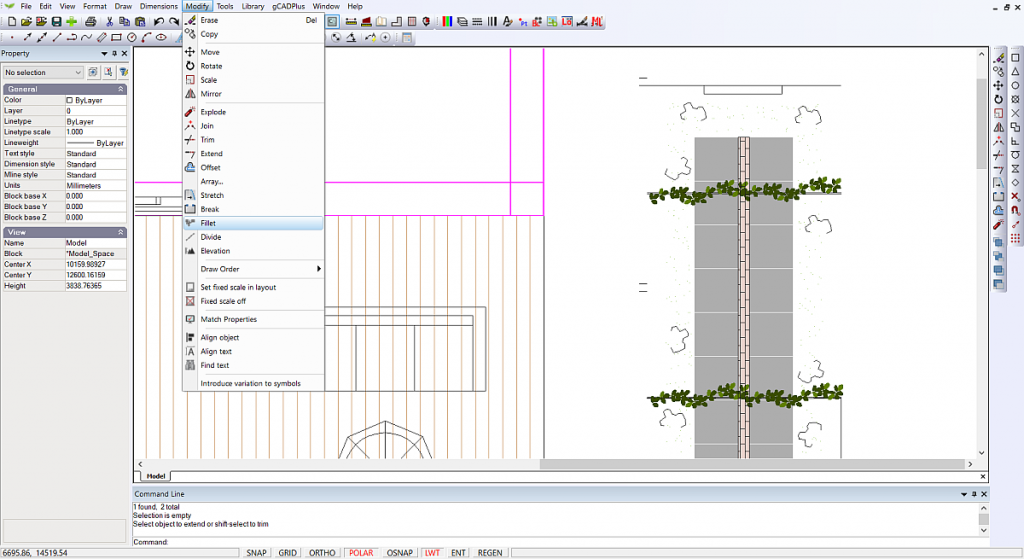

Trim with fillet
